Norden Draughting Ltd

Welcome to Norden Draughting Limited; the solution to all your CAD, Design and Surveying needs.

Our services include:

Space Planning - various disciplines including commercial/ retail, design elevations, commodity planning, feasibility studies and format design.

2D/3D Computer Aided Design – our core CAD skills that support all facets of our business

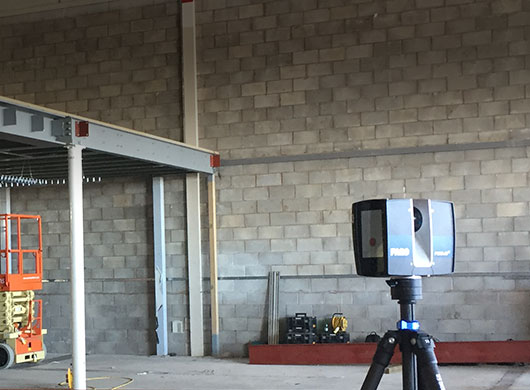

Surveying – building, fixtures and fittings, commodity, site, warehouse, elevations, car park and sense check.

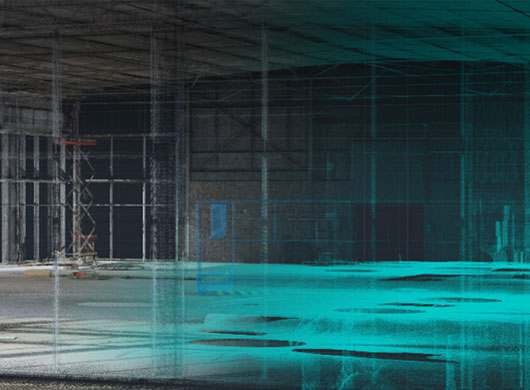

3D Laser Scanning - utilising the latest laser scanning technologies, we have the capabilities to complete full three dimensional surveys & deliver 3D CAD models to exact precision from point cloud data.

Retail BIM Design - providing retailers with BIM solutions to fully enhance design, documentation & evaluation of retail design accompanied by automated scheduling and visualisation capabilities.

Scan to BIM - combining our full laser scanning facility to produce an accurate 3D design model from point cloud data and converting to full BIM models.

Visualisations - realistic internal and external images to gain a visual understanding of the design built from full 3D models.

Rendered Walkthroughs - complete virtual tours of design space giving the ultimate interpretation of the design.

PDF to CAD - converting PDF or other image style files into DWG/DGN formats.
